Compile-time metadata for supported dtypes. More...

#include <climits>
#include <cstddef>
#include <limits>
#include <string_view>
#include <type_traits>
#include <stratax/core/dtypes/Types.hpp>

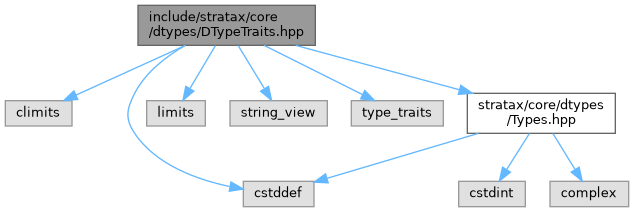

Include dependency graph for DTypeTraits.hpp:

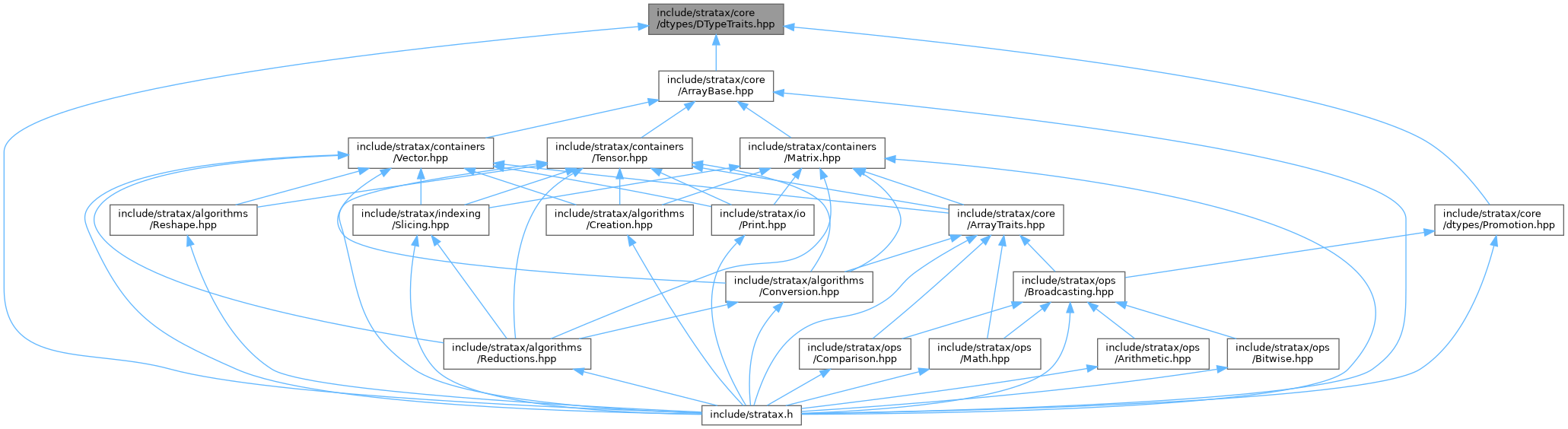

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::bool_ >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::int8 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::int16 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::int32 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::int64 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::uint8 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::uint16 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::uint32 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::uint64 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::float32 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::float64 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::longdouble >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::complex64 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::complex128 >
	Registered dtype metadata specialization. More...

struct	stratax::core::dtype_detail::DTypeTraitsImpl< dtype::clongdouble >
	Registered dtype metadata specialization. More...

struct	stratax::core::DTypeTraits< T >
	Provides compile-time metadata for a supported Stratax dtype. More...

struct	stratax::core::ComplexComponent< dtype::complex64 >
	Real component mapping for a registered complex dtype. More...

struct	stratax::core::ComplexComponent< dtype::complex128 >
	Real component mapping for a registered complex dtype. More...

struct	stratax::core::ComplexComponent< dtype::clongdouble >
	Real component mapping for a registered complex dtype. More...

struct	stratax::core::ComplexFromReal< dtype::float32 >
	Complex mapping for a registered real floating-point dtype. More...

struct	stratax::core::ComplexFromReal< dtype::float64 >
	Complex mapping for a registered real floating-point dtype. More...

struct	stratax::core::ComplexFromReal< dtype::longdouble >
	Complex mapping for a registered real floating-point dtype. More...

Macros
#define	STRATAX_DEFINE_DTYPE_TRAITS(TYPE, KIND, NAME)
	Defines metadata for a non-complex Stratax dtype.

#define	STRATAX_DEFINE_FLOAT_DTYPE_TRAITS(TYPE, RANK, NAME)
	Defines metadata for a ranked floating-point Stratax dtype.

#define	STRATAX_DEFINE_COMPLEX_DTYPE_TRAITS(TYPE, COMPONENT, RANK, NAME)
	Defines metadata for a complex Stratax dtype.

#define	STRATAX_DEFINE_COMPLEX_COMPONENT(COMPLEX, REAL)
	Defines a complex-to-real component specialization.

#define	STRATAX_DEFINE_COMPLEX_FROM_REAL(REAL, COMPLEX)
	Defines a real-to-complex dtype specialization.

Typedefs
template<typename T >
using	stratax::core::complex_component_t = typename ComplexComponent< std::remove_cvref_t< T > >::type
	Underlying real dtype of a complex dtype.

template<typename T >
using	stratax::core::complex_from_real_t = typename ComplexFromReal< std::remove_cvref_t< T > >::type
	Complex dtype corresponding to a real floating-point dtype.

Enumerations
enum class	stratax::core::DTypeKind { Bool , SignedInteger , UnsignedInteger , Floating , Complex }
	Identifies the general category of a Stratax dtype. More...

Detailed Description

Compile-time metadata for supported dtypes.

Definition in file DTypeTraits.hpp.

Macro Definition Documentation

◆ STRATAX_DEFINE_COMPLEX_COMPONENT

#define STRATAX_DEFINE_COMPLEX_COMPONENT	(	COMPLEX,
		REAL
	)

Value:

 \
    template<> \
    struct ComplexComponent<COMPLEX> \
    { \
using type = REAL; \    }

Defines a complex-to-real component specialization.

Definition at line 135 of file DTypeTraits.hpp.

◆ STRATAX_DEFINE_COMPLEX_DTYPE_TRAITS

#define STRATAX_DEFINE_COMPLEX_DTYPE_TRAITS	(	TYPE,
		COMPONENT,
		RANK,
		NAME
	)

Value:

\

template<> \

struct DTypeTraitsImpl<TYPE> \

{ \

using type = TYPE; \ using component_type = COMPONENT; \ static constexpr DTypeKind kind = DTypeKind::Complex; \ static constexpr std::size_t bits = sizeof(type) * CHAR_BIT; \ static constexpr int digits = std::numeric_limits<component_type>::digits; \ static constexpr std::size_t rank = RANK; \ static constexpr std::string_view name = NAME; \

}

Defines metadata for a complex Stratax dtype.

Complex precision is defined by the precision of its underlying floating-point component type.

Definition at line 76 of file DTypeTraits.hpp.

◆ STRATAX_DEFINE_COMPLEX_FROM_REAL

#define STRATAX_DEFINE_COMPLEX_FROM_REAL	(	REAL,
		COMPLEX
	)

Value:

 \
    template<> \
    struct ComplexFromReal<REAL> \
    { \
using type = COMPLEX; \    }

Defines a real-to-complex dtype specialization.

Definition at line 163 of file DTypeTraits.hpp.

◆ STRATAX_DEFINE_DTYPE_TRAITS

#define STRATAX_DEFINE_DTYPE_TRAITS	(	TYPE,
		KIND,
		NAME
	)

Value:

\

template<> \

struct DTypeTraitsImpl<TYPE> \

{ \

using type = TYPE; \ static constexpr DTypeKind kind = DTypeKind::KIND; \ static constexpr std::size_t bits = sizeof(type) * CHAR_BIT; \ static constexpr int digits = std::numeric_limits<type>::digits; \ static constexpr std::string_view name = NAME; \

}

Defines metadata for a non-complex Stratax dtype.

Definition at line 42 of file DTypeTraits.hpp.

◆ STRATAX_DEFINE_FLOAT_DTYPE_TRAITS

#define STRATAX_DEFINE_FLOAT_DTYPE_TRAITS	(	TYPE,
		RANK,
		NAME
	)

Value:

\

template<> \

struct DTypeTraitsImpl<TYPE> \

{ \

using type = TYPE; \ static constexpr DTypeKind kind = DTypeKind::Floating; \ static constexpr std::size_t bits = sizeof(type) * CHAR_BIT; \ static constexpr int digits = std::numeric_limits<type>::digits; \ static constexpr std::size_t rank = RANK; \ static constexpr std::string_view name = NAME; \

}

Defines metadata for a ranked floating-point Stratax dtype.

Definition at line 57 of file DTypeTraits.hpp.

Typedef Documentation

◆ complex_component_t

template<typename T >

using stratax::core::complex_component_t = typedef typename ComplexComponent<std::remove_cvref_t<T> >::type

Underlying real dtype of a complex dtype.

Definition at line 153 of file DTypeTraits.hpp.

◆ complex_from_real_t

template<typename T >

using stratax::core::complex_from_real_t = typedef typename ComplexFromReal<std::remove_cvref_t<T> >::type

Complex dtype corresponding to a real floating-point dtype.

Definition at line 181 of file DTypeTraits.hpp.

Enumeration Type Documentation

◆ DTypeKind

enum class stratax::core::DTypeKind

strong

Identifies the general category of a Stratax dtype.

Definition at line 19 of file DTypeTraits.hpp.
