Shared owning storage and layout base for Stratax array containers. More...

#include <ArrayBase.hpp>

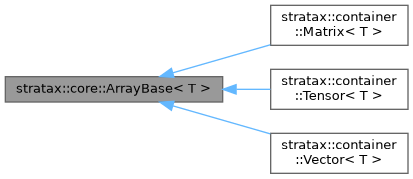

Inheritance diagram for stratax::core::ArrayBase< T >:

[legend]

Public Types
using	value_type = typename Buffer< T >::value_type
	Stored element type.

using	size_type = typename Buffer< value_type >::size_type
	Unsigned type used for element counts and indices.

using	difference_type = typename Buffer< value_type >::difference_type
	Signed type used for checked indices and iterator distances.

using	reference = typename Buffer< value_type >::reference
	Mutable element reference type.

using	const_reference = typename Buffer< value_type >::const_reference
	Read-only element reference type.

using	pointer = typename Buffer< value_type >::pointer
	Mutable element pointer type.

using	const_pointer = typename Buffer< value_type >::const_pointer
	Read-only element pointer type.

using	iterator = typename Buffer< value_type >::iterator
	Mutable contiguous random-access iterator type.

using	const_iterator = typename Buffer< value_type >::const_iterator
	Read-only contiguous random-access iterator type.

using	reverse_iterator = typename Buffer< value_type >::reverse_iterator
	Mutable reverse iterator type.

using	const_reverse_iterator = typename Buffer< value_type >::const_reverse_iterator
	Read-only reverse iterator type.

Public Member Functions
size_type	size () const noexcept
	Returns the number of stored elements.

bool	empty () const noexcept
	Reports whether no elements are stored.

size_type	rank () const noexcept
	Returns the number of logical dimensions.

const Shape &	shape () const noexcept
	Returns the logical shape metadata.

const Shape &	strides () const noexcept
	Returns the row-major stride metadata.

pointer	data () noexcept
	Returns a pointer to contiguous mutable element storage.

const_pointer	data () const noexcept
	Returns a pointer to contiguous read-only element storage.

reference	front ()
	Returns the first element.

const_reference	front () const
	Returns the first element.

reference	back ()
	Returns the final element.

const_reference	back () const
	Returns the final element.

reference	operator[] (size_type index) noexcept
	Returns an element without bounds checking.

const_reference	operator[] (size_type index) const noexcept
	Returns an element without bounds checking.

reference	at (difference_type index)
	Returns an element using checked, Python-style flat indexing.

const_reference	at (difference_type index) const
	Returns an element using checked, Python-style flat indexing.

iterator	begin () noexcept
	Returns a mutable iterator to the first element.

const_iterator	begin () const noexcept
	Returns a const iterator to the first element.

const_iterator	cbegin () const noexcept
	Returns a const iterator to the first element.

iterator	end () noexcept
	Returns a mutable iterator past the final element.

const_iterator	end () const noexcept
	Returns a const iterator past the final element.

const_iterator	cend () const noexcept
	Returns a const iterator past the final element.

reverse_iterator	rbegin () noexcept
	Returns a mutable reverse iterator to the final element.

const_reverse_iterator	rbegin () const noexcept
	Returns a const reverse iterator to the final element.

const_reverse_iterator	crbegin () const noexcept
	Returns a const reverse iterator to the final element.

reverse_iterator	rend () noexcept
	Returns the past-the-end mutable reverse iterator.

const_reverse_iterator	rend () const noexcept
	Returns the past-the-end const reverse iterator.

const_reverse_iterator	crend () const noexcept
	Returns the past-the-end const reverse iterator.

void	fill (const_reference value)
	Assigns `value` to every stored element.

void	swap (ArrayBase &other) noexcept
	Exchanges storage and layout metadata with `other`.

Static Public Member Functions
static constexpr std::string_view	dtype () noexcept
	Returns the canonical name of the stored element dtype.

Protected Member Functions
	ArrayBase (const ArrayBase &)=default
	Copies storage and layout into independent buffers.

	ArrayBase (ArrayBase &&) noexcept=default
	Transfers storage and layout, leaving the source empty with rank zero.

ArrayBase &	operator= (ArrayBase &&) noexcept=default
	Replaces storage and layout by moving; a distinct source becomes empty with rank zero.

ArrayBase &	operator= (const ArrayBase &other)
	Copies storage and layout as one transaction.

	ArrayBase (const Shape &shape)
	Constructs value-initialized storage for `shape`.

	ArrayBase (const Shape &shape, const_reference value)
	Constructs storage filled with `value` for `shape`.

	ArrayBase (const Shape &shape, Buffer< value_type > &&buffer)
	Adopts an existing buffer for `shape`.

template<typename IndexContainer >
size_type	normalized_flat_offset (const IndexContainer &raw_indices) const
	Converts checked signed multidimensional indices to a flat offset.

Detailed Description

template<DType T>
class stratax::core::ArrayBase< T >

Shared owning storage and layout base for Stratax array containers.

ArrayBase keeps an element Buffer synchronized with Shape metadata and its derived row-major stride Shape. It supplies the common one-dimensional container interface used by Vector, Matrix, and Tensor; derived classes provide rank constraints and multidimensional indexing APIs.

The class is not directly constructible by users because its constructors are protected.

Template Parameters

T	Type of each stored array element.

Invariants

size() == shape().elements().
rank() == shape().rank() == strides().rank().
strides() represents the row-major layout of shape().

See also: Buffer; Shape

Definition at line 40 of file ArrayBase.hpp.

Member Typedef Documentation

◆ const_iterator

template<DType T>

using stratax::core::ArrayBase< T >::const_iterator = typename Buffer<value_type>::const_iterator

Read-only contiguous random-access iterator type.

Definition at line 60 of file ArrayBase.hpp.

◆ const_pointer

template<DType T>

using stratax::core::ArrayBase< T >::const_pointer = typename Buffer<value_type>::const_pointer

Read-only element pointer type.

Definition at line 56 of file ArrayBase.hpp.

◆ const_reference

template<DType T>

using stratax::core::ArrayBase< T >::const_reference = typename Buffer<value_type>::const_reference

Read-only element reference type.

Definition at line 52 of file ArrayBase.hpp.

◆ const_reverse_iterator

template<DType T>

using stratax::core::ArrayBase< T >::const_reverse_iterator = typename Buffer<value_type>::const_reverse_iterator

Read-only reverse iterator type.

Definition at line 64 of file ArrayBase.hpp.

◆ difference_type

template<DType T>

using stratax::core::ArrayBase< T >::difference_type = typename Buffer<value_type>::difference_type

Signed type used for checked indices and iterator distances.

Definition at line 48 of file ArrayBase.hpp.

◆ iterator

template<DType T>

using stratax::core::ArrayBase< T >::iterator = typename Buffer<value_type>::iterator

Mutable contiguous random-access iterator type.

Definition at line 58 of file ArrayBase.hpp.

◆ pointer

template<DType T>

using stratax::core::ArrayBase< T >::pointer = typename Buffer<value_type>::pointer

Mutable element pointer type.

Definition at line 54 of file ArrayBase.hpp.

◆ reference

template<DType T>

using stratax::core::ArrayBase< T >::reference = typename Buffer<value_type>::reference

Mutable element reference type.

Definition at line 50 of file ArrayBase.hpp.

◆ reverse_iterator

template<DType T>

using stratax::core::ArrayBase< T >::reverse_iterator = typename Buffer<value_type>::reverse_iterator

Mutable reverse iterator type.

Definition at line 62 of file ArrayBase.hpp.

◆ size_type

template<DType T>

using stratax::core::ArrayBase< T >::size_type = typename Buffer<value_type>::size_type

Unsigned type used for element counts and indices.

Definition at line 46 of file ArrayBase.hpp.

◆ value_type

template<DType T>

using stratax::core::ArrayBase< T >::value_type = typename Buffer<T>::value_type

Stored element type.

Definition at line 44 of file ArrayBase.hpp.

Constructor & Destructor Documentation

◆ ArrayBase() [1/5]

template<DType T>

stratax::core::ArrayBase< T >::ArrayBase ( const ArrayBase< T > & )

protecteddefault

Copies storage and layout into independent buffers.

Complexity: O(n + r), for n source elements and rank r.

◆ ArrayBase() [2/5]

template<DType T>

stratax::core::ArrayBase< T >::ArrayBase ( ArrayBase< T > && )

protecteddefaultnoexcept

Transfers storage and layout, leaving the source empty with rank zero.

Complexity: O(1).

◆ ArrayBase() [3/5]

template<DType T>

stratax::core::ArrayBase< T >::ArrayBase ( const Shape & shape )

inlineexplicitprotected

Constructs value-initialized storage for shape.

Parameters

shape Logical shape of the resulting array.

Exceptions

Exceptions::DimensionError	If the element count or a stride cannot be represented by size_type.
std::bad_alloc	If element or metadata allocation fails.
Any	exception thrown while constructing a value_type element.

Complexity: O(shape.elements() + shape.rank()).

Definition at line 247 of file ArrayBase.hpp.

◆ ArrayBase() [4/5]

template<DType T>

stratax::core::ArrayBase< T >::ArrayBase	(	const Shape &	shape,
		const_reference	value
	)

inlineprotected

Constructs storage filled with value for shape.

Parameters

shape	Logical shape of the resulting array.
value	Value copied into every element.

Exceptions

Exceptions::DimensionError	If the element count or a stride cannot be represented by size_type.
std::bad_alloc	If element or metadata allocation fails.
Any	exception thrown by value_type's copy constructor.

Complexity: O(shape.elements() + shape.rank()).

Definition at line 263 of file ArrayBase.hpp.

◆ ArrayBase() [5/5]

template<DType T>

stratax::core::ArrayBase< T >::ArrayBase	(	const Shape &	shape,
		Buffer< value_type > &&	buffer
	)

inlineprotected

Adopts an existing buffer for shape.

Ownership of buffer is transferred before its element count is validated. If validation fails, the adopted storage is released while unwinding construction.

Parameters

shape	Logical shape associated with the storage.
buffer	Element storage to adopt.

Exceptions

Exceptions::ShapeError	If `buffer.size() != shape.elements()`.
Exceptions::DimensionError	If the element count or a stride cannot be represented by size_type.
std::bad_alloc	If metadata allocation fails.

Complexity: O(shape.rank()) plus O(1) buffer ownership transfer.

Definition at line 284 of file ArrayBase.hpp.

Member Function Documentation

◆ at() [1/2]

template<DType T>

reference stratax::core::ArrayBase< T >::at ( difference_type index )

inline

Returns an element using checked, Python-style flat indexing.

Parameters

index Index in the range [-size(), size()).

Exceptions

Exceptions::IndexError If index is outside the valid range.

Complexity: O(1).

Definition at line 153 of file ArrayBase.hpp.

◆ at() [2/2]

template<DType T>

const_reference stratax::core::ArrayBase< T >::at ( difference_type index ) const

inline

Returns an element using checked, Python-style flat indexing.

Parameters

index Index in the range [-size(), size()).

Exceptions

Exceptions::IndexError If index is outside the valid range.

Complexity: O(1).

Definition at line 160 of file ArrayBase.hpp.

◆ back() [1/2]

template<DType T>

reference stratax::core::ArrayBase< T >::back ( )

inline

Returns the final element.

Exceptions

Exceptions::IndexError If empty.

Complexity: O(1).

Definition at line 122 of file ArrayBase.hpp.

◆ back() [2/2]

template<DType T>

const_reference stratax::core::ArrayBase< T >::back ( ) const

inline

Returns the final element.

Exceptions

Exceptions::IndexError If empty.

Complexity: O(1).

Definition at line 132 of file ArrayBase.hpp.

◆ begin() [1/2]

template<DType T>

const_iterator stratax::core::ArrayBase< T >::begin ( ) const

inlinenoexcept

Returns a const iterator to the first element.

Complexity: O(1).

Definition at line 165 of file ArrayBase.hpp.

◆ begin() [2/2]

template<DType T>

iterator stratax::core::ArrayBase< T >::begin ( )

inlinenoexcept

Returns a mutable iterator to the first element.

Complexity: O(1).

Definition at line 163 of file ArrayBase.hpp.

◆ cbegin()

template<DType T>

const_iterator stratax::core::ArrayBase< T >::cbegin ( ) const

inlinenoexcept

Returns a const iterator to the first element.

Complexity: O(1).

Definition at line 167 of file ArrayBase.hpp.

◆ cend()

template<DType T>

const_iterator stratax::core::ArrayBase< T >::cend ( ) const

inlinenoexcept

Returns a const iterator past the final element.

Complexity: O(1).

Definition at line 173 of file ArrayBase.hpp.

◆ crbegin()

template<DType T>

const_reverse_iterator stratax::core::ArrayBase< T >::crbegin ( ) const

inlinenoexcept

Returns a const reverse iterator to the final element.

Complexity: O(1).

Definition at line 179 of file ArrayBase.hpp.

◆ crend()

template<DType T>

const_reverse_iterator stratax::core::ArrayBase< T >::crend ( ) const

inlinenoexcept

Returns the past-the-end const reverse iterator.

Complexity: O(1).

Definition at line 185 of file ArrayBase.hpp.

◆ data() [1/2]

template<DType T>

const_pointer stratax::core::ArrayBase< T >::data ( ) const

inlinenoexcept

Returns a pointer to contiguous read-only element storage.

Returns: First element address, or nullptr when empty.

Complexity: O(1).

Definition at line 98 of file ArrayBase.hpp.

◆ data() [2/2]

template<DType T>

pointer stratax::core::ArrayBase< T >::data ( )

inlinenoexcept

Returns a pointer to contiguous mutable element storage.

Returns: First element address, or nullptr when empty.

Complexity: O(1).

Definition at line 92 of file ArrayBase.hpp.

◆ dtype()

template<DType T>

static constexpr std::string_view stratax::core::ArrayBase< T >::dtype ( )

inlinestaticconstexprnoexcept

Returns the canonical name of the stored element dtype.

Complexity: O(1).

Definition at line 67 of file ArrayBase.hpp.

◆ empty()

template<DType T>

bool stratax::core::ArrayBase< T >::empty ( ) const

inlinenoexcept

Reports whether no elements are stored.

Complexity: O(1).

Definition at line 76 of file ArrayBase.hpp.

◆ end() [1/2]

template<DType T>

const_iterator stratax::core::ArrayBase< T >::end ( ) const

inlinenoexcept

Returns a const iterator past the final element.

Complexity: O(1).

Definition at line 171 of file ArrayBase.hpp.

◆ end() [2/2]

template<DType T>

iterator stratax::core::ArrayBase< T >::end ( )

inlinenoexcept

Returns a mutable iterator past the final element.

Complexity: O(1).

Definition at line 169 of file ArrayBase.hpp.

◆ fill()

template<DType T>

void stratax::core::ArrayBase< T >::fill ( const_reference value )

inline

Assigns value to every stored element.

Parameters

value Value copied into each element.

Exceptions

Any	exception thrown by value_type's copy-assignment operator.

Complexity: O(size()).

Definition at line 193 of file ArrayBase.hpp.

◆ front() [1/2]

template<DType T>

reference stratax::core::ArrayBase< T >::front ( )

inline

Returns the first element.

Exceptions

Exceptions::IndexError If empty.

Complexity: O(1).

Definition at line 101 of file ArrayBase.hpp.

◆ front() [2/2]

template<DType T>

const_reference stratax::core::ArrayBase< T >::front ( ) const

inline

Returns the first element.

Exceptions

Exceptions::IndexError If empty.

Complexity: O(1).

Definition at line 111 of file ArrayBase.hpp.

◆ normalized_flat_offset()

template<DType T>

template<typename IndexContainer >

size_type stratax::core::ArrayBase< T >::normalized_flat_offset ( const IndexContainer & raw_indices ) const

inlineprotected

Converts checked signed multidimensional indices to a flat offset.

Each component is normalized independently against its corresponding dimension. Negative components count backward from the end.

Template Parameters

IndexContainer Sized, indexable container of signed indices.

Parameters

raw_indices One index per logical dimension.

Returns: Row-major flat element offset.

Exceptions

Exceptions::RankError	If the number of indices differs from the rank.
Exceptions::IndexError	If the array is empty or an index component is out of bounds.

Complexity: O(rank()).

Definition at line 310 of file ArrayBase.hpp.

◆ operator=() [1/2]

template<DType T>

ArrayBase & stratax::core::ArrayBase< T >::operator= ( ArrayBase< T > && )

protecteddefaultnoexcept

Replaces storage and layout by moving; a distinct source becomes empty with rank zero.

Complexity: O(size() + rank()).

◆ operator=() [2/2]

template<DType T>

ArrayBase & stratax::core::ArrayBase< T >::operator= ( const ArrayBase< T > & other )

inlineprotected

Copies storage and layout as one transaction.

Parameters

other Source array base.

Returns: Reference to this base.

Exceptions

std::bad_alloc If storage or metadata allocation fails; this object is unchanged.

Complexity: O(size() + other.size() + rank() + other.rank()).

Definition at line 228 of file ArrayBase.hpp.

◆ operator[]() [1/2]

template<DType T>

const_reference stratax::core::ArrayBase< T >::operator[] ( size_type index ) const

inlinenoexcept

Returns an element without bounds checking.

Precondition: index < size().

Complexity: O(1).

Definition at line 145 of file ArrayBase.hpp.

◆ operator[]() [2/2]

template<DType T>

reference stratax::core::ArrayBase< T >::operator[] ( size_type index )

inlinenoexcept

Returns an element without bounds checking.

Precondition: index < size().

Complexity: O(1).

Definition at line 143 of file ArrayBase.hpp.

◆ rank()

template<DType T>

size_type stratax::core::ArrayBase< T >::rank ( ) const

inlinenoexcept

Returns the number of logical dimensions.

Complexity: O(1).

Definition at line 79 of file ArrayBase.hpp.

◆ rbegin() [1/2]

template<DType T>

const_reverse_iterator stratax::core::ArrayBase< T >::rbegin ( ) const

inlinenoexcept

Returns a const reverse iterator to the final element.

Complexity: O(1).

Definition at line 177 of file ArrayBase.hpp.

◆ rbegin() [2/2]

template<DType T>

reverse_iterator stratax::core::ArrayBase< T >::rbegin ( )

inlinenoexcept

Returns a mutable reverse iterator to the final element.

Complexity: O(1).

Definition at line 175 of file ArrayBase.hpp.

◆ rend() [1/2]

template<DType T>

const_reverse_iterator stratax::core::ArrayBase< T >::rend ( ) const

inlinenoexcept

Returns the past-the-end const reverse iterator.

Complexity: O(1).

Definition at line 183 of file ArrayBase.hpp.

◆ rend() [2/2]

template<DType T>

reverse_iterator stratax::core::ArrayBase< T >::rend ( )

inlinenoexcept

Returns the past-the-end mutable reverse iterator.

Complexity: O(1).

Definition at line 181 of file ArrayBase.hpp.

◆ shape()

template<DType T>

const Shape & stratax::core::ArrayBase< T >::shape ( ) const

inlinenoexcept

Returns the logical shape metadata.

Complexity: O(1).

Definition at line 82 of file ArrayBase.hpp.

◆ size()

template<DType T>

size_type stratax::core::ArrayBase< T >::size ( ) const

inlinenoexcept

Returns the number of stored elements.

Complexity: O(1).

Definition at line 73 of file ArrayBase.hpp.

◆ strides()

template<DType T>

const Shape & stratax::core::ArrayBase< T >::strides ( ) const

inlinenoexcept

Returns the row-major stride metadata.

Complexity: O(1).

Definition at line 85 of file ArrayBase.hpp.

◆ swap()

template<DType T>

void stratax::core::ArrayBase< T >::swap ( ArrayBase< T > & other )

inlinenoexcept

Exchanges storage and layout metadata with other.

Pointers, references, and iterators remain valid but refer to elements now owned by the other object.

Parameters

other ArrayBase whose state is exchanged with this object.

Precondition: Both layouts satisfy any fixed-rank invariants of the receiving derived containers (for example, do not swap a Vector base with a Matrix base).

Complexity: O(1).

Definition at line 206 of file ArrayBase.hpp.

The documentation for this class was generated from the following file:

include/stratax/core/ArrayBase.hpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ const_iterator

◆ const_pointer

◆ const_reference

◆ const_reverse_iterator

◆ difference_type

◆ iterator

◆ pointer

◆ reference

◆ reverse_iterator

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ ArrayBase() [1/5]

◆ ArrayBase() [2/5]

◆ ArrayBase() [3/5]

◆ ArrayBase() [4/5]

◆ ArrayBase() [5/5]

Member Function Documentation

◆ at() [1/2]

◆ at() [2/2]

◆ back() [1/2]

◆ back() [2/2]

◆ begin() [1/2]

◆ begin() [2/2]

◆ cbegin()

◆ cend()

◆ crbegin()

◆ crend()

◆ data() [1/2]

◆ data() [2/2]

◆ dtype()

◆ empty()

◆ end() [1/2]

◆ end() [2/2]

◆ fill()

◆ front() [1/2]

◆ front() [2/2]

◆ normalized_flat_offset()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ rank()

◆ rbegin() [1/2]

◆ rbegin() [2/2]

◆ rend() [1/2]

◆ rend() [2/2]

◆ shape()

◆ size()

◆ strides()

◆ swap()
